Can a 1.35 liter chassis host a desktop class Intel Core Ultra CPU and 96 GB of RAM while staying practical for industrial use? Verdict up front, Shuttle's XPC Slim DH810S pulls that off with sensible trade offs in I O.
What Shuttle Changed And Why It Matters
The DH810S keeps the core promise of its predecessor, supporting LGA 1851 65 watt Arrow Lake desktop class CPUs and dual SODIMM slots for up to 96 GB DDR5 memory. The key difference is in physical connectivity. Shuttle reduced higher bandwidth ports and prioritized additional DisplayPort outputs, which signals a shift toward display focused or embedded deployments rather than maximum peripheral expansion.
Key Specifications At A Glance
- Socket: LGA 1851, supports 65 W Intel Core Ultra 200 Arrow Lake S CPUs
- Cores: Up to 24 cores on top Core Ultra models
- Memory: Dual SODIMM slots, up to 2 x 48 GB, 96 GB DDR5 total
- Storage: M.2 2280 PCIe Gen 4 x4 NVMe, plus one 2.5 inch drive bay
- Cooling: Dual fan active cooling within a 1.35 liter chassis

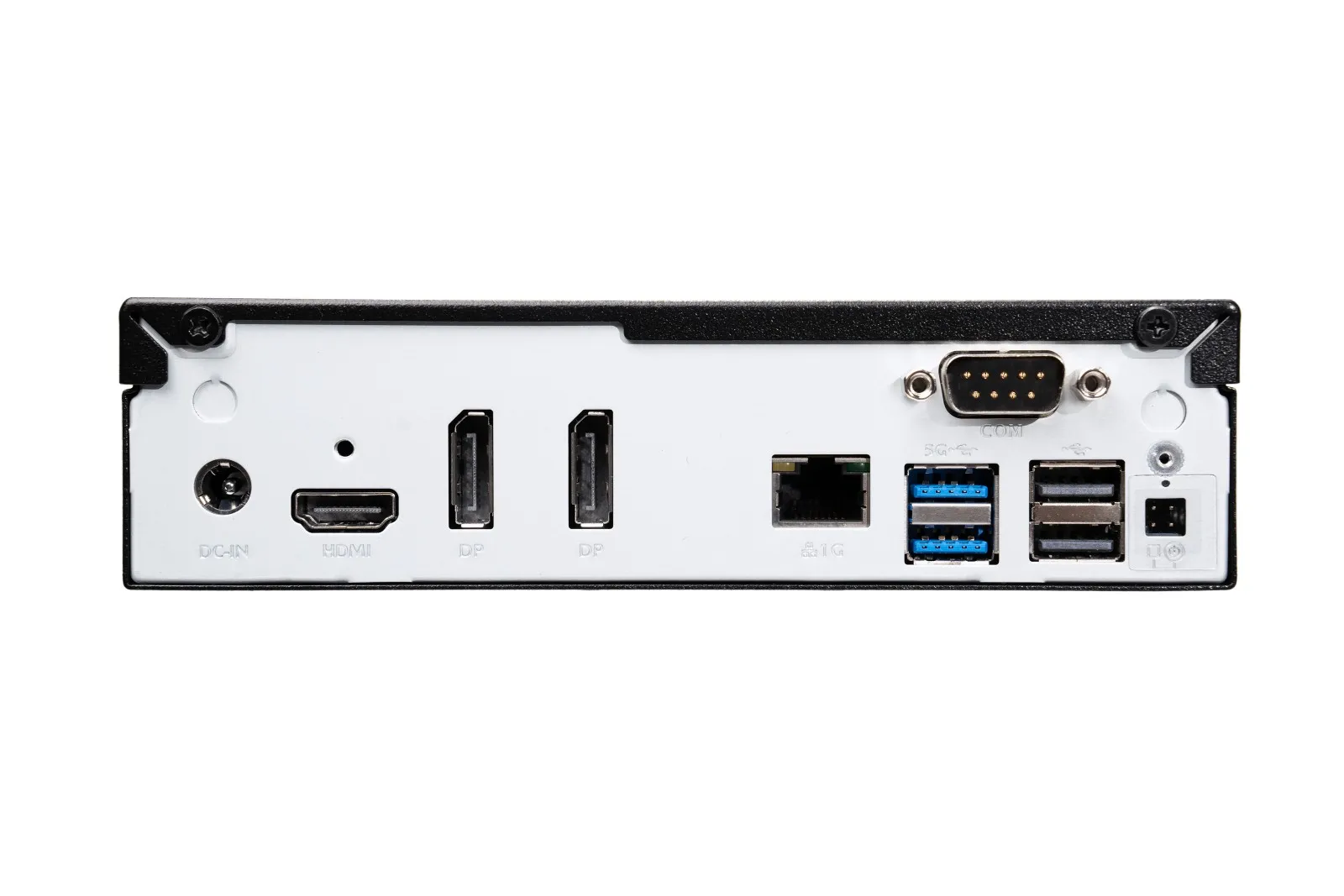

- I O: USB 3.2 Gen 1 Type A, USB 3.2 Gen 2 Type A, USB 3.2 Gen 2 Type C, 4x USB 2.0 Type A, 2x DisplayPort 1.4a, 1x HDMI 2.1, 1G Ethernet, RS 232 COM port
- Wireless: Optional M.2 2230 Wi Fi and Bluetooth module
Usage Context And Practical Trade Offs
For integrators who need raw Intel Arrow Lake compute in a compact footprint, the DH810S is a strong choice. The 65 watt limit on supported CPUs keeps thermals manageable inside a 1.35 liter body while still offering near desktop performance. The platform is optimized for display heavy or industrial tasks, where multiple DisplayPort outputs and legacy serial connectivity matter more than a Thunderbolt or USB4 port.
Expect trade offs when you require many high speed peripherals simultaneously. The absence of USB4 and the reduced high speed port count mean external expansion via hubs or internal PCIe add ons through available M.2 lanes will be necessary for certain workstation style workflows.
Competitor Comparison
Compared with other compact systems that use mobile CPUs, Shuttle's approach is distinct. The DH810S aims closer to Intel desktop Arrow Lake solutions, delivering more multi core capacity than typical NUC class devices. Against fanless industrial boxes the DH810S offers higher thermal headroom and faster NVMe storage support, but it competes with other custom embedded vendors on long term support and I O flexibility.
Pricing and Availability
Shuttle has not published pricing for the DH810S. The company asks potential customers to request quotations directly. For reference, Notebookcheck notes that a comparable unlocked Core Ultra 9 285K sells for $495 in retail channels, which helps frame how Shuttle positions the 65 watt DH810 SKU in terms of performance per watt.
Source: Shuttle | Notebookcheck
